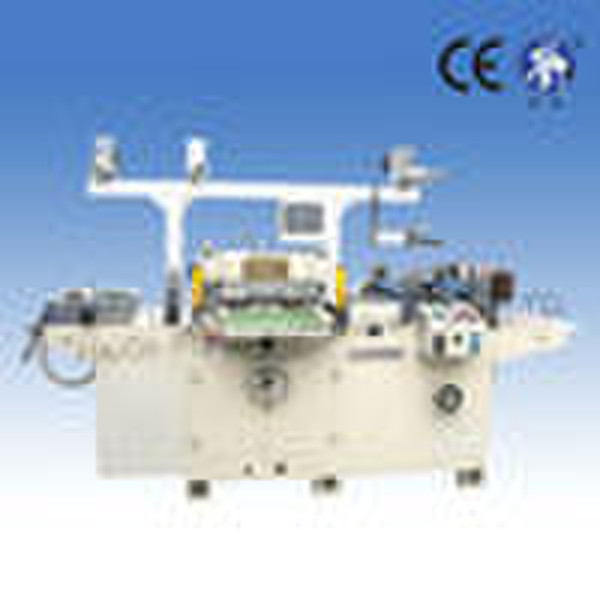

Flatbed die cutter

Flatbed die cutter (HX-350B)Functional characteristics:1. the machine enjoys multi-layer sticking partial sticking multi-strip tape sticking etc,2. the imported motor is used for the receiving bottom sheet of sticking film.feeding-filming(enjoying multi-layer sticking and partial sticking)-die-cutting-waste draining-slitting-rolling,all of them are completed by the computer control by one turn.Uses: various insulating materials such as electronic shield materials,PVC,film ,Mylar,copper foil,Aluminum foil and so on.Main technical parameter:ModelHX-350BCutting speed20-180t/minMax.unwinding diameter450mmMax web width320mmMax mould cutting width300mmMax mould cutting length300mmOrientation accuracy±0.10mmPower of motor3kw 220/380vTotal power5.5kwOverall dimension(L*W*H)2250*1150*1500mmMachine weight1500kg Flatbed Die Cutting Pannel Cutting Knife Export information: 1.Export packing : wooden case 2.Certifications: We have passed ISO9001 and CE certificationin 2009 3.We have 10years export experience inbelt cutting machine Our advantage: 1.The guarantee is one year ! 2. After service: A reply within 24 hours 3. Export experience for 10 years and manufacturing experience for 30years in this field .
